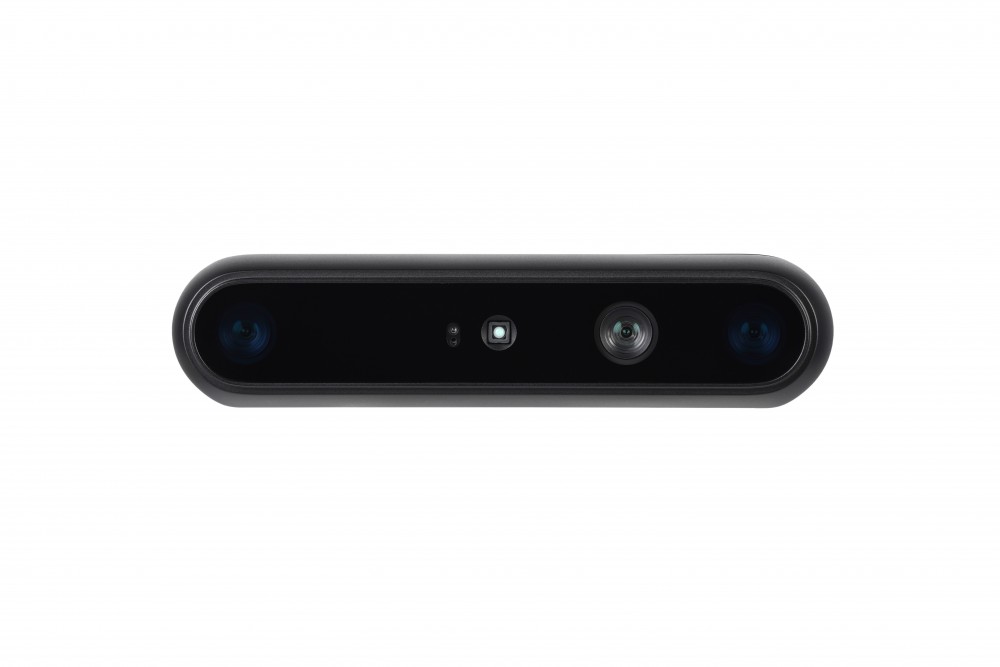

Gemini335Lg
Gemini 335Lg is a standout model in the Gemini 330 series, serving as the GMSL2/FAKRA version of the industry-proven Gemini 335L. The GMSL2 serializer combined with the FAKRA connector ensures secure and reliable connectivity for autonomous mobile robots (AMRs) navigating complex environments and robotic arms requiring flexible cabling.
Stereo Structured light 3D Depth Camera
•
Active/passive stereo ensures reliable performance in dynamic environments.
•
Outdoor and indoor operations with IP65 rating
•
Built-in depth and RGB image processing
•
Depth Measurement Accuracy : a Spatial Precision (Root Mean Squared Error: RMSE)
of less than 0.8% for depth measurements at 2m
•
Wide Field of View at 90° Horizontal and 65° Vertical
•
Precise synchronization of depth and color frames; supports multiple-device
synchronization.
• Powered
by GMSL2/FAKRA
• IP65
