Gemini335Le

Gemini335Le

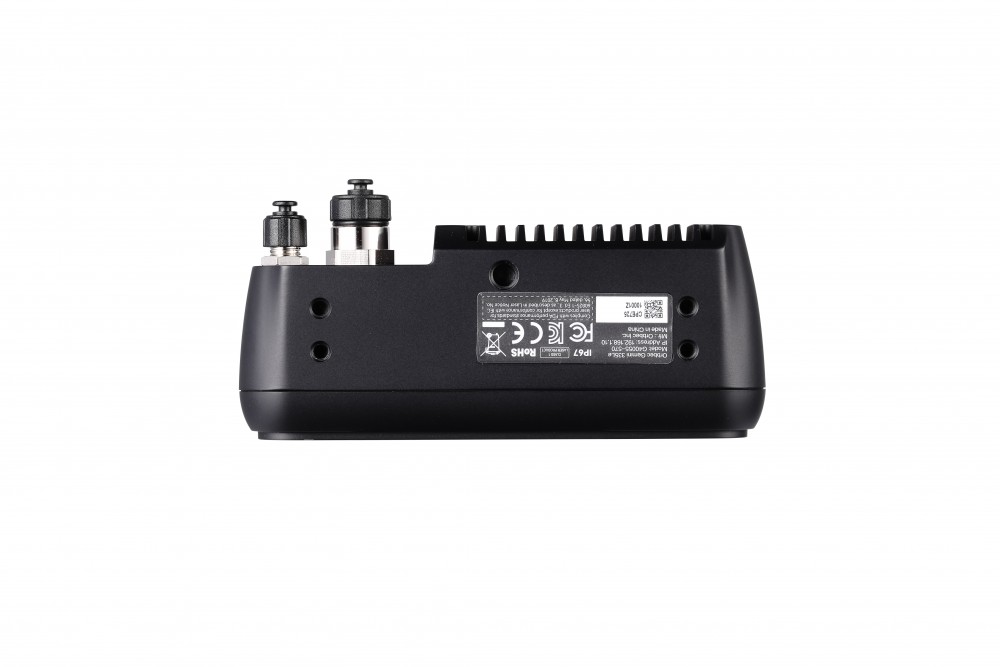

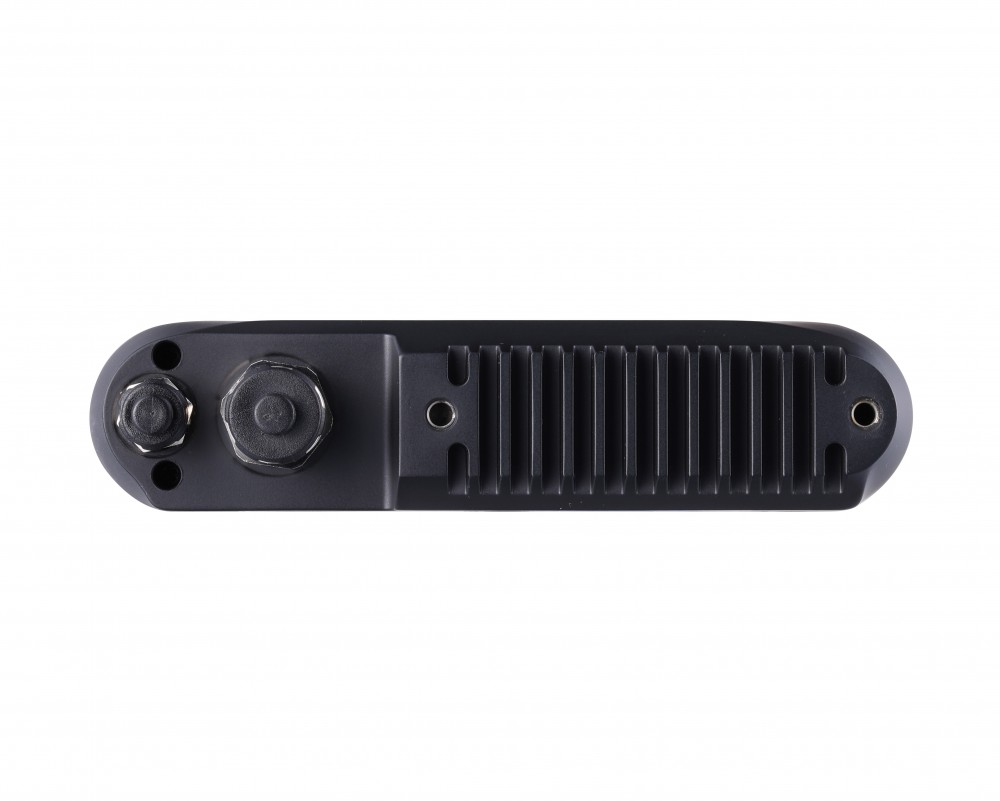

The Gemini 335Le features M12 X-coded and M8 A-coded industrial interfaces. The M12 X-coded connector supports simultaneous data and power delivery through PoE, outperforming USB in stability for high-vibration and long-distance connection scenarios. The M8 A-coded connector supports DC power supply, multi-device sync, and RS-485 communication. While GMSL cameras are equally reliable, the Gemini 335Le’s Ethernet-based design makes setup and deployment significantly simpler.

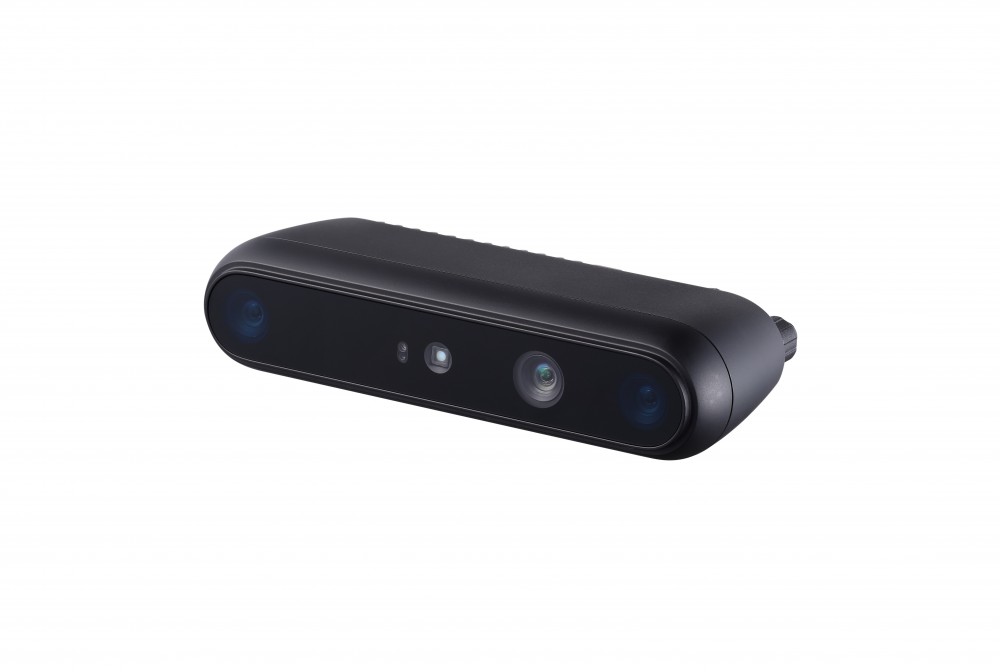

Stereo Structured light 3D Depth Camera

• Active/passive stereo ensures reliable performance in dynamic environments
• Outdoor and indoor operations with IP65 rating
• Built-in depth and RGB image processing
• Depth Measurement Accuracy : a Spatial Precision (Root Mean Squared Error: RMSE) of less than 0.8% for depth measurements at 2m
• Wide Field of View at 90° Horizontal and 65° Vertical
• Precise synchronization of depth and color frames; supports multiple-device synchronization.
• Gigabit Ethernet with POE
• IP67

The Gemini 335Le features M12 X-coded and M8 A-coded industrial interfaces. The M12 X-coded connector supports simultaneous data and power delivery through PoE, outperforming USB in stability for high-vibration and long-distance connection scenarios. The M8 A-coded connector supports DC power supply, multi-device sync, and RS-485 communication. While GMSL cameras are equally reliable, the Gemini 335Le’s Ethernet-based design makes setup and deployment significantly simpler.
