ORBBEC
Astra+

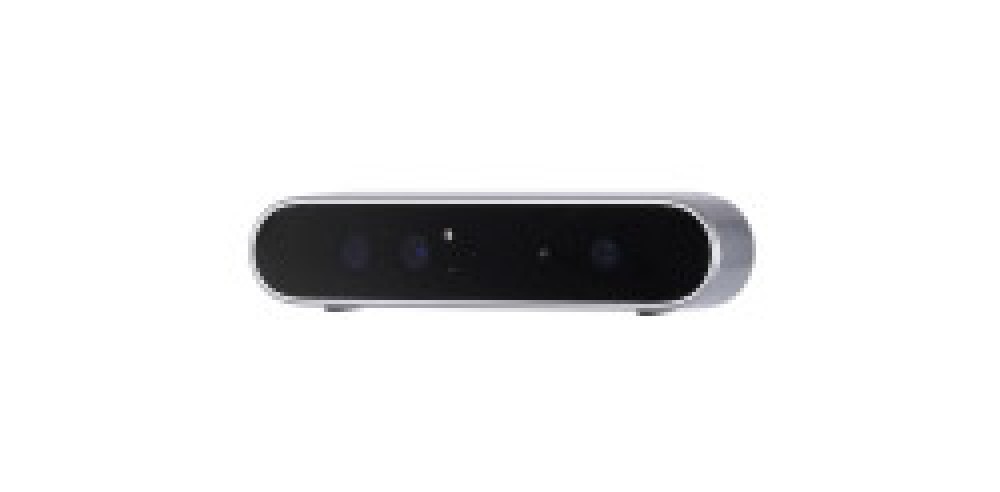

Astra + is a 3D camera based on structured light imaging technology. As an iterative upgrade product of Astra series, Astra + is equipped with MX 6000 self-developed depth sensing chip, which can provide customers with high-precision depth data within the range of 0.6~8m depth measurement.
The camera interface has been upgraded to USB 3.0, which can provide higher bandwidth and has an intelligent active heat dissipation system with a wider working temperature range. It can be widely used in robot obstacle avoidance, volume measurement, behavior analysis, entertainment games and other application scenarios.
Structured Light 3D Depth Camera
- ORBBEC Depth computing processor MX 6000
- Depth image : up to 1280×1024 resolution @30 fps
- RGB image : up to 2048×1536 resolution @15 fps
- High quality depth output : 3mm @1m, relative
- D2C function at multiple resolution accuracy
- Working distance : 0.6m~8m
- Integrated interface : USB 3.0 Type-C supports UVC protocol
